Uploading Data To Your PAT Tester

NOTE! You can only upload to the folowing PAT tetsers

• Megger PAT4 DV/3
• Megger 410, 420, 450
• Seaward Europa Plus
• Seaward Supernova Plus
• Transmille 6080 Plus
• Metrel OmegaPat Plus MI3305
• Metrel OmegaPat Plus MI3305 (NZ / AUS Firmware)
• Metrel BetaPat Plus MI3304
• Metrel BetaPat Plus MI3304 (NZ / AUS Firmware)
• Metrel SigmaPat MI3310
• Metrel SigmaPat MI3310 (NZ / AUS Firmware)

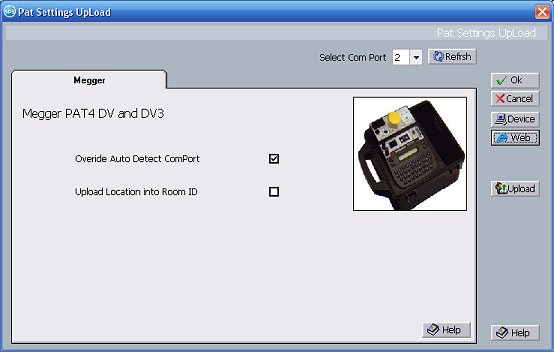

Select the "Upload PAT" option from the "File Menu" and you will see the PAT Settings Upload screen. Shown below.

The PAT tester displayed should be the same one as was used to download the data you have in the SimplyPats main screen. Click on the links below to see individual help on uploading each PAT tester.

• Uploading To The Megger PAT4
• Uploading To The Megger PAT410, 420, 450
• Uploading To The Europa / Supernova Plus
• Uploading To The Transmille 6080 Plus
• Uploading To The Metrel BetaPat OmegaPat Plus
• Uploading To The Metrel SigmaPat


Before you can upload, you must select the tests which you wish to upload.

See Sorting And Grouping

See Selecting A Range Of Tests
