Wiring
The Download Cables
You can purchase the download cable for most PAT testers from our SimplyPats shopping page:
Click Here to Purchase Cable From SimplyPats On Line Shopping Page
The Diagrams below show you how to wire the download cable for use with your PAT Tester.
All the Fluke and
and Seaward testers that we have experienced seem to use a twisted pair standard
serial cable.
The Metrel and Transmille Pat test machines all seem to use a straight through
cable, what is sometimes referred to as an RS232 extension lead.
The Megger PAT4 has it's own proprietary cable which is unique.
NOTE! You should only use the supplied serial cable to connect your PAT
Tester to your PC, the serial cable supplied with the PAT Tester differs from
most normal serial cables available in your local computer store. YOU MAY
CAUSE DAMAGE TO YOUR PAT TESTER OR COMPUTER, IF YOU USE THE WRONG SERIAL CABLE!

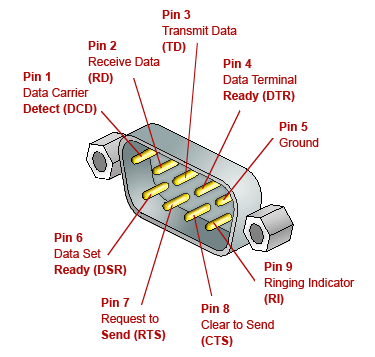

The tables show the wiring of the PINs in a 9pin to 9pin cable. Male end connecting to the PAT and Female end connecting to the PC.
Metrel AlphaPat, BetaPat, OmegaPat and SigmaPat, Transmille 6080 and 6080 PLUS
Signal |
Omega |
PC |
|
DCD |
1 |
1 |
|
RXD |
2 |
2 |
|
TXD |
3 |
3 |
|
DTR |
4 |
4 |
|
GND |
5 |
5 |
|
DSR |
6 |
6 |
|
RTS |
7 |
7 |
|
CTS |
8 |
8 |
|
+5V |
9 |
9 |
Seaward Supernova, Supernova+, Europa, Europa+ Fluke 6500 Pat Testers
| Signal | Europa | PC | |
| DCD | |||
| RXD | 2 | 3 | |
| TXD | 3 | 2 | |
| DTR | 4, 6 and 8 Joined | ||
| GND | 5 | 5 | |
| DSR | 4, 6 and 8 Joined | ||
| RTS | |||
| CTS | 4, 6 and 8 Joined | ||
| +5V |
Megger PAT4 DVe
| Signal | PAT4 | PC | |
| DCD | 1 | 7 | |
| RXD | 2 | 3 | |
| TXD | 3 | 2 | |
| DTR | 4 | 6 and 8 | |
| GND | 5 | 5 | |
| DSR | 6 | 4 | |
| RTS | 7 | 1 | |
| CTS | 8 | 4 | |
| +5V | 9 | 9 |
Robin SmartPat 5000, Seaward 1000X, 1000s, IT1000, PAT1000
| Signal | SmartPat | PC | |
| DCD | |||
| RXD | 2 | 4 and 6 and 8 | |
| TXD | 3 | 2 | |
| DTR | |||
| GND | 5 | 5 | |
| DSR | |||
| RTS | |||
| CTS | |||
| +5V |
Kewtech KT74, KT75 and KT77
| Signal | SmartPat | PC | |
| DCD | |||
| RXD | 2 | 4 and 6 and 8 | |
| TXD | 3 | 2 | |
| DTR | |||
| GND | 5 | 5 | |
| DSR | |||
| RTS | |||
| CTS | |||
| +5V |
Martindale MPATPLUS (MicroPat+), Metrotest MPAT40 and MPAT60
Martindale Part Number TL125
| Signal | MicroPat+ | PC | |
| DCD | |||
| RXD | 2 | 4 and 6 and 8 | |
| TXD | 3 | 2 | |
| DTR | |||
| GND | 5 | 5 | |
| DSR | |||
| RTS | |||
| CTS | |||
| +5V |
(This Topic Last updated 11/07/2012)
